ENGTH Series
For High-Speed Heavy Cutting

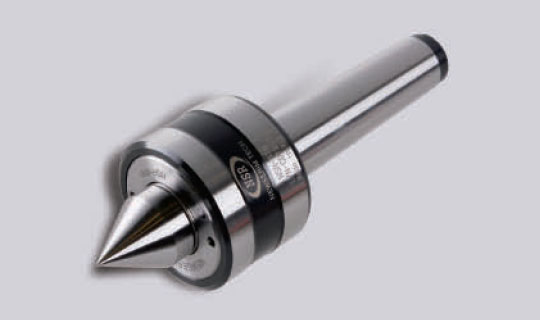

TH-Series
- Adjustable to wobble of center axis by nut
- Run out - Max 0.003mm
NSR-TH TYPE
- Heat treatment hardness of center axis, HRC 58~62
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ||||||
| 1006003 | 3TH | MT3 | 49 | 25 | 154 | 85 | 69 | 43 | 26 | 6 | 500 | 4,000 | 0.003 |
| 1006004 | 4TH | MT4 | 66 | 31.4 | 194.5 | 108 | 86.5 | 49.5 | 37 | 8 | 1,000 | 3,000 | 0.003 |
| 1006005 | 5TH | MT5 | 81 | 40 | 242 | 136 | 106 | 61 | 45 | 8 | 2,000 | 2,500 | 0.003 |
| 1006005G | 5THG | MT5 | 93 | 40 | 250 | 136 | 114 | 71 | 43 | 8 | 2,500 | 2,000 | 0.003 |
| 1006006 | 6TH | MT6 | 126 | 60 | 334.2 | 189 | 145.2 | 85.2 | 60 | 10 | 4,500 | 1,000 | 0.003 |

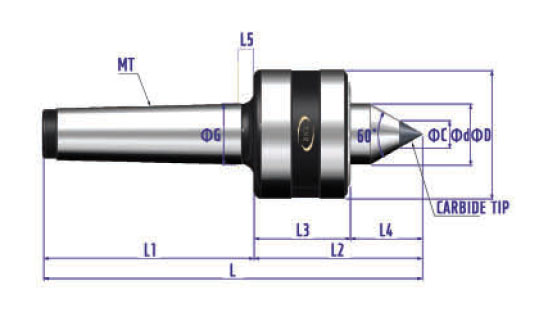

NSR-THC TYPE
- Minimized the wear property by inserting tungsten admium alloy (=tungalloy) to center position.
- Hardness of the tungsten cadmuim alloy (=tungalloy) HRA 90~91
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦC | ||||||
| 1006013 | 3THC | MT3 | 49 | 25 | 154 | 85 | 69 | 43 | 26 | 6 | 10 | 500 | 4,000 | 0.003 |
| 1006014 | 4THC | MT4 | 66 | 31.4 | 194.5 | 108 | 86.5 | 49.5 | 37 | 8 | 14 | 1,000 | 3,000 | 0.003 |
| 1006015 | 5THC | MT5 | 81 | 40 | 242 | 136 | 106 | 61 | 45 | 8 | 18 | 2,000 | 2,500 | 0.003 |
| 1006015G | 5THCG | MT5 | 93 | 40 | 250 | 136 | 114 | 71 | 43 | 8 | 18 | 2,500 | 2,000 | 0.003 |
| 1006016 | 6THC | MT6 | 126 | 60 | 334.2 | 189 | 145.2 | 85.2 | 60 | 10 | 30 | 4,500 | 1,000 | 0.003 |
