ENGSNH Series
For High-Speed Rotation
SNH-Series
- Using the special-precision bearing for a high-speed and special oil seal
- High-speed, high-precision work easy
- Run out - Max 0.002mm

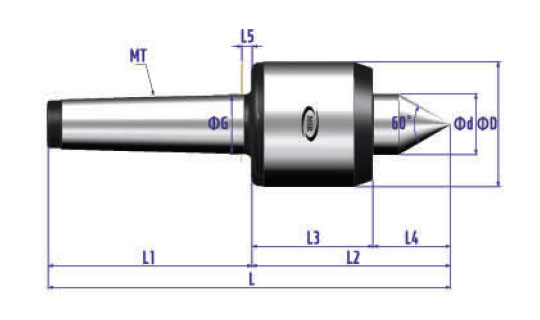

NSR-SNH TYPE
- Heat treatment hardness of center axis, HRC 58~62
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ||||||
| 1003003 | 3SNH | MT3 | 49 | 25 | 162.5 | 85 | 77.5 | 49.5 | 28 | 4.5 | 750 | 6,000 | 0.002 |
| 1003004 | 4SNH | MT4 | 66 | 32 | 213 | 108 | 105 | 64 | 41 | 5.3 | 1,500 | 6,000 | 0.002 |
| 1003005 | 5SNH | MT5 | 82 | 40 | 251 | 136 | 115 | 72 | 43 | 6.3 | 2,500 | 5,000 | 0.002 |

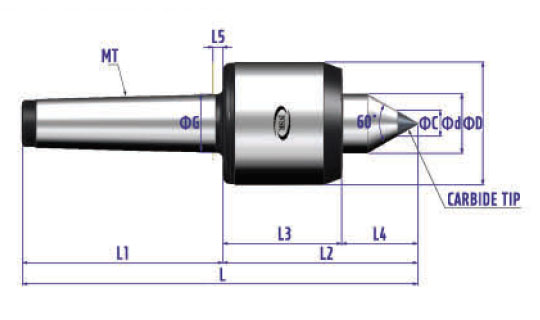

NSR-SNHC TYPE
- Minimized the wear property by inserting tungsten admium alloy (=tungalloy) to center position.
- Hardness of the tungsten cadmuim alloy (=tungalloy) HRA 90~91
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦC | ||||||
| 1003013 | 3SNHC | MT3 | 49 | 25 | 162.5 | 85 | 77.5 | 49.5 | 28 | 4.5 | 10 | 750 | 6,000 | 0.002 |
| 1003014 | 4SNHC | MT4 | 66 | 32 | 213 | 108 | 105 | 64 | 41 | 5.3 | 14 | 1,500 | 6,000 | 0.002 |
| 1003015 | 5SNHC | MT5 | 82 | 40 | 251 | 136 | 115 | 72 | 43 | 6.3 | 18 | 2,500 | 5,000 | 0.002 |

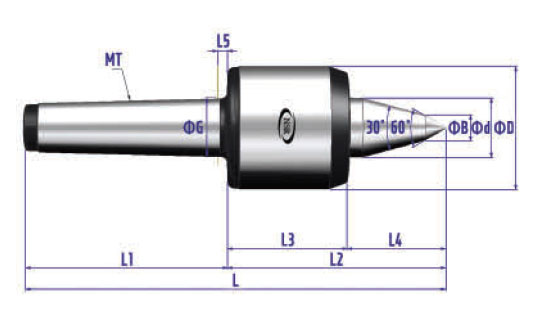

NSR-SNHA TYPE
- Second step-angle application for minimize the bite-interference
- Heat treatment hardness of center axis, HRC 58~62
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦB | ||||||
| 1003023 | 3SNHA | MT3 | 49 | 25 | 172.5 | 85 | 87.5 | 49.5 | 38 | 4.5 | 12 | 600 | 6,000 | 0.002 |
| 1003024 | 4SNHA | MT4 | 66 | 32 | 225 | 108 | 117 | 64 | 53 | 5.3 | 14 | 1,100 | 6,000 | 0.002 |
| 1003025 | 5SNHA | MT5 | 82 | 40 | 273 | 136 | 137 | 72 | 65 | 6.3 | 16 | 2,000 | 5,000 | 0.002 |
NSR-SNHAC TYPE
- Second step-angle application for minimize the bite-interference
- Minimized the wear property by inserting tungsten admium alloy (=tungalloy) to center position.
- Hardness of the tungsten cadmium alloy (=tungalloy) HRA 90~91
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦC | ||||||
| 1003033 | 3SNHAC | MT3 | 49 | 25 | 172.5 | 85 | 87.5 | 49.5 | 38 | 4.5 | 12 | 600 | 6,000 | 0.002 |
| 1003034 | 4SNHAC | MT4 | 66 | 32 | 225 | 108 | 117 | 64 | 53 | 5.3 | 14 | 1,100 | 6,000 | 0.002 |
| 1003035 | 5SNHAC | MT5 | 82 | 40 | 273 | 136 | 137 | 72 | 65 | 6.3 | 16 | 2,000 | 5,000 | 0.002 |
NSR-SNHAL TYPE
- Minimized the bite-interference
- Heat treatment hardness of center axis, HRC 58~62
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | L6 | Φd1 | ||||||
| 1003043 | 3SNHAL | MT3 | 49 | 25 | 183.5 | 85 | 98.5 | 49.5 | 49 | 4.5 | 19 | 10 | 500 | 6,000 | 0.002 |
| 1003044 | 4SNHAL | MT4 | 66 | 32 | 235 | 108 | 127 | 64 | 63 | 5.3 | 23 | 12 | 900 | 6,000 | 0.002 |
| 1003045 | 5SNHAL | MT5 | 82 | 40 | 288 | 136 | 152 | 72 | 80 | 6.3 | 23 | 12 | 1,700 | 5,000 | 0.002 |

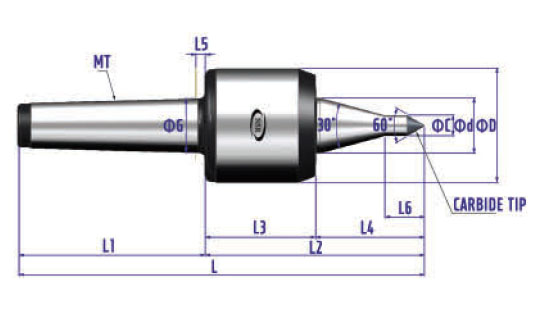

NSR-SNHALC TYPE
- Second step-angle application for minimize the bite-interference
- Minimized the wear property by inserting tungsten admium alloy (\tungalloy) to center position.
- Hardness of the tungsten cadmium alloy (=tungalloy) HRA 90~91
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | L6 | ΦC | ||||||
| 1003053 | 3SNHALC | MT3 | 49 | 25 | 183.5 | 85 | 98.5 | 49.5 | 49 | 4.5 | 19 | 10 | 500 | 6,000 | 0.002 |
| 1003054 | 4SNHALC | MT4 | 66 | 32 | 235 | 108 | 127 | 64 | 63 | 5.3 | 23 | 12 | 900 | 6,000 | 0.002 |
| 1003055 | 5SNHALC | MT5 | 82 | 40 | 288 | 136 | 152 | 72 | 80 | 6.3 | 23 | 12 | 1,700 | 5,000 | 0.002 |
