SH Series
High-Speed Rotation Type (Standard)
![](http://www.newserim.com/eng/product/sh-series.jpg)
SH-Series
- Use high speed bearing and special
- Easy to work at high speed
- Run out - Max 0.002mm

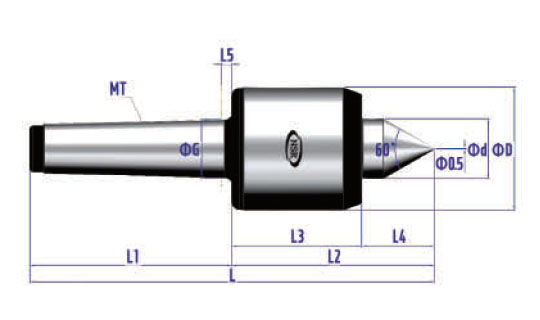

![](http://www.newserim.com/eng/product/nsr-sh.jpg)
NSR-SH TYPE
- Heat treatment hardness of center axis, HRC 58~62
Scroll Left / Right
Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ||||||
1023003 | 3SH | MT3 | 49 | 25 | 167.4 | 85 | 82.4 | 54.4 | 28 | 4.5 | 750 | 6,000 | 0.002 |
1023004 | 4SH | MT4 | 66 | 32 | 216.6 | 108 | 108.6 | 69.6 | 39 | 5.3 | 1,440 | 6,000 | 0.002 |
1023005 | 5SH | MT5 | 82 | 40 | 258.8 | 136 | 122.8 | 79.8 | 43 | 6.3 | 2,500 | 5,000 | 0.002 |

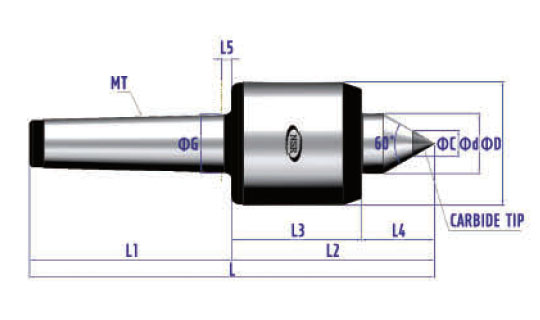

![](http://www.newserim.com/eng/product/nsr-shc.jpg)
NSR-SHC TYPE
- Minimized the wear property by inserting tungsten admium alloy (=tungalloy) to center position.
- Hardness of the tungsten cadmuim alloy (=tungalloy) HRA 90~91
Scroll Left / Right
Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦC | ||||||
1023013 | 3SHC | MT3 | 49 | 25 | 167.4 | 85 | 82.4 | 54.4 | 28 | 4.5 | 10 | 750 | 6,000 | 0.002 |
1023014 | 4SHC | MT4 | 66 | 32 | 216.6 | 108 | 108.6 | 69.6 | 39 | 5.3 | 14 | 1,400 | 6,000 | 0.002 |
1023015 | 5SHC | MT5 | 82 | 40 | 258.8 | 136 | 122.8 | 79.8 | 43 | 6.3 | 18 | 2,500 | 5,000 | 0.002 |
![](http://www.newserim.com/eng/product/nsr-sha.jpg)
NSR-SHA TYPE
- Second step-angle application for minimize the bite-interference
- Heat treatment hardness of center axis, HRC 58~62
Scroll Left / Right
Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦB | ||||||
1001023 | 3SHA | MT3 | 49 | 25 | 177.4 | 85 | 92.4 | 54.4 | 38 | 4.5 | 12 | 600 | 6,000 | 0.002 |
1001024 | 4SHA | MT4 | 66 | 32 | 230.6 | 108 | 122.6 | 69.6 | 53 | 5.3 | 14 | 1,100 | 6,000 | 0.002 |
1001025 | 5SHA | MT5 | 82 | 40 | 279 | 136 | 143 | 79.8 | 63.2 | 63.2 | 16 | 2,000 | 5,000 | 0.002 |
![](http://www.newserim.com/eng/product/nsr-shac.jpg)
NSR-SHAC TYPE
- Second step-angle application for minimize the bite-interference
- Minimized the wear property by inserting tungsten admium alloy (=tungalloy) to center position.
- Hardness of the tungsten cadmium alloy (=tungalloy) HRA 90~91
Scroll Left / Right
Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦC | ||||||
1023033 | 3SHAC | MT3 | 49 | 25 | 177.4 | 85 | 92.4 | 54.4 | 38 | 4.5 | 12 | 600 | 6,000 | 0.002 |
1023034 | 4SHAC | MT4 | 66 | 32 | 230.6 | 108 | 122.6 | 69.6 | 53 | 5.3 | 14 | 1,100 | 6,000 | 0.002 |
1023035 | 5SHAC | MT5 | 82 | 40 | 279 | 136 | 143 | 79.8 | 63.2 | 6.3 | 16 | 2,000 | 5,000 | 0.002 |

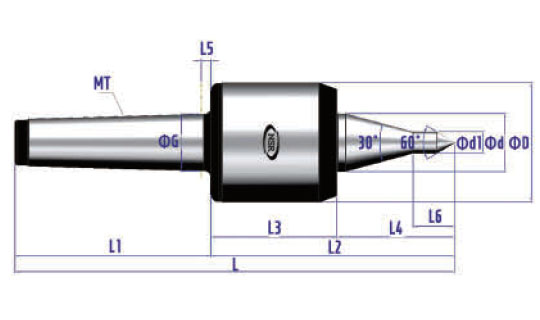

![](http://www.newserim.com/eng/product/nsr-shal.jpg)
NSR-SHAL TYPE
- Minimized the bite-interference
- Heat treatment hardness of center axis, HRC 58~62
Scroll Left / Right
Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | L6 | Φd1 | ||||||
1023043 | 3SHAL | MT3 | 49 | 25 | 184.4 | 85 | 99.4 | 54.4 | 45 | 4.5 | 15 | 10 | 600 | 6,000 | 0.002 |
1023044 | 4SHAL | MT4 | 66 | 32 | 242.6 | 108 | 134.6 | 69.6 | 65 | 5.3 | 23 | 12 | 1,100 | 6,000 | 0.002 |
1023045 | 5SHAL | MT5 | 83 | 40 | 296.5 | 136 | 160.5 | 79.8 | 80.7 | 6.3 | 24 | 12 | 2,000 | 5,000 | 0.002 |
![](http://www.newserim.com/eng/product/nsr-shalc.jpg)
NSR-SHALC TYPE
- Minimized the bite-interference
- The initial diameter is inserted in the center area to minimize wearability.
- Hardness of the tungsten cadmium alloy (=tungalloy) HRA 90~91
Scroll Left / Right
Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | L6 | ΦC | ||||||
1023053 | 3SHALC | MT3 | 49 | 25 | 184.4 | 85 | 99.4 | 54.4 | 45 | 15 | 15 | 10 | 600 | 6,000 | 0.002 |
1023054 | 4SHALC | MT4 | 66 | 32 | 242.6 | 108 | 134.6 | 69.6 | 5.3 | 23 | 23 | 12 | 1,100 | 6,000 | 0.002 |
1023055 | 5SHALC | MT5 | 82 | 40 | 296.5 | 136 | 160.5 | 79.8 | 6.3 | 24 | 24 | 12 | 2,000 | 5,000 | 0.002 |
