ENGSNP Series

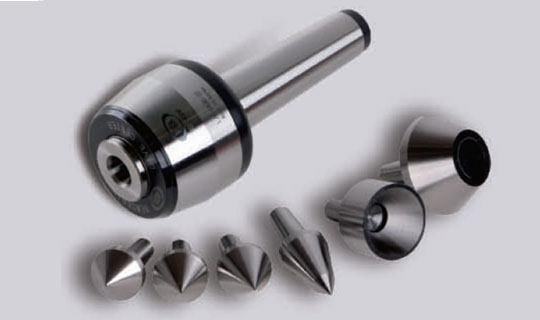

Points Interchangeable Rotating Center
SNP-Series
Point Exchangeable Center
NSR-SNP Type
- Hish-Speed presicion bearing structure
- Heat Treatment hardness of center axis and point HRC 58~62
- RUN OUT - Max 0.003mm
- Point clamping RUN OUT - Max 0.005
Scroll Left / Right

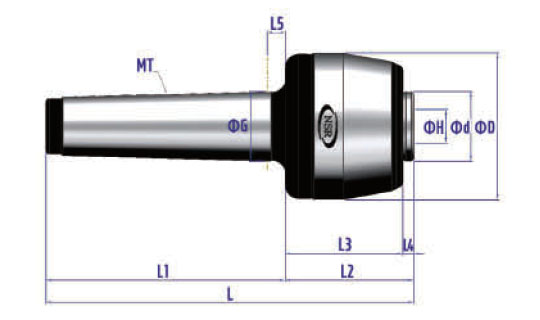

| Model No |
Model | Morse Taper |
ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦH | MAX RPM |
WP WEIGHT(kgf) |
MAX RUN OUT(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1002012 | 2SNP BODY | MT2 | 49 | 25 | 115 | 68 | 47 | 42 | 5 | 6 | 12 | 100 | 5,000 | 0.003 |
| 1002013 | 3SNP BODY | MT3 | 49 | 25 | 85 | 85 | 47 | 42 | 5 | 6 | 12 | 180 | 5,000 | 0.003 |
| 1002014 | 4SNP BODY | MT4 | 66 | 31.4 | 166 | 108 | 58 | 53 | 5 | 6 | 15 | 300 | 3,800 | 0.003 |
| 1002015 | 5SNP BODY | MT5 | 83 | 40 | 207.5 | 136 | 71.5 | 65 | 6.2 | 8 | 22 | 700 | 3,000 | 0.003 |
-

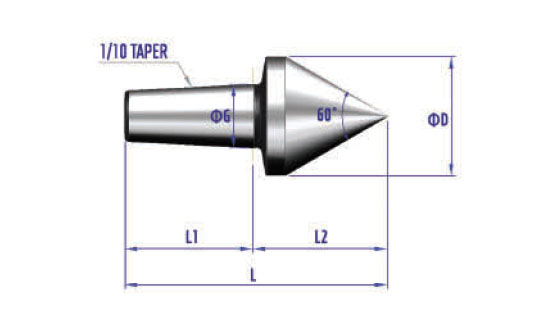

SNP POINT 60
Scroll Left / RightNo. Model Morse
TaperDimension ΦD ΦG L L1 L2 1002012-1 2SNP POINT 1:10 20 12 48 24 24 1002013-1 3SNP POINT 1:10 20 12 48 24 24 1002014-1 4SNP POINT 1:10 28 15 61.5 30 31.5 1002015-1 5SNP POINT 1:10 28 22 78 35 43 -

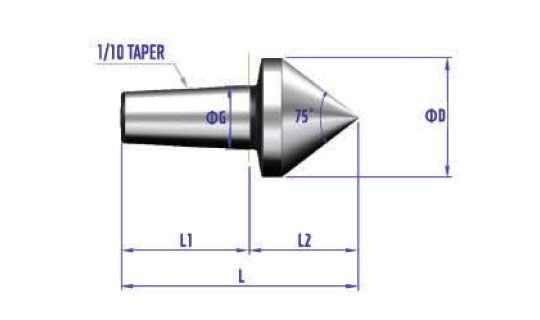

SNP POINT 75
Scroll Left / RightNo. Model Morse
TaperDimension ΦD ΦG L L1 L2 1002012-2 2SNP POINT 1:10 20 12 43.8 24 19.8 1002013-2 3SNP POINT 1:10 20 12 43.8 24 19.8 1002014-2 4SNP POINT 1:10 28 15 55.6 30 25.9 1002015-2 5SNP POINT 1:10 28 22 70 35 35 -

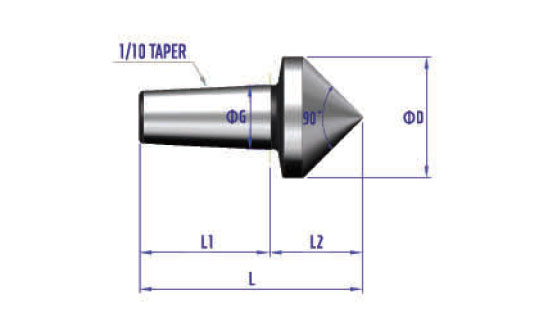

SNP POINT 90
Scroll Left / RightNo. Model Morse
TaperDimension ΦD ΦG L L1 L2 1002012-3 2SNP POINT 1:10 20 12 40.9 24 16.9 1002013-3 3SNP POINT 1:10 20 12 40.9 24 16.9 1002014-3 4SNP POINT 1:10 28 15 51.5 30 21.5 1002015-3 5SNP POINT 1:10 28 22 64.3 35 29.3 -

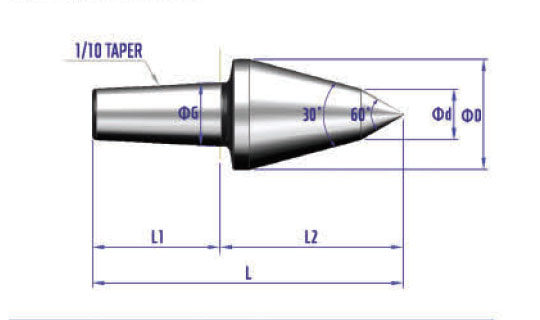

SNP POINT A30
Scroll Left / RightNo. Model Morse
TaperDimension ΦD ΦG L L1 L2 1002012-4 2SNP POINT 1:10 18 12 24 30 10 1002013-4 3SNP POINT 1:10 18 12 24 30 10 1002014-4 4SNP POINT 1:10 26 15 30 43 12 1002015-4 5SNP POINT 1:10 32 22 35 55 14 -
SNP POINT B60
Scroll Left / RightNo. Model Morse
TaperDimension ΦD ΦG L L1 L2 Φd 1002012-5 2SNP POINT 1:10 45 12 51 24 27 25 1002013-5 3SNP POINT 1:10 45 12 51 24 27 25 1002014-5 4SNP POINT 1:10 55 15 61.5 30 31.5 30 1002015-5 5SNP POINT 1:10 70 22 73 35 38 40 -

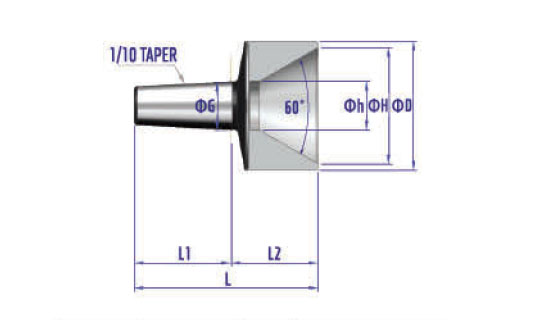

SNP POINT H60
Scroll Left / RightNo. Model Morse
TaperDimension ΦD ΦG L L1 L2 ΦH Φh 1002012-6 2SNP POINT MT2 22 12 40 24 16 18 6 1002013-6 3SNP POINT MT3 22 12 40 24 16 18 6 1002014-6 4SNP POINT MT4 40 15 57 30 27 36 15 1002015-6 5SNP POINT MT5 50 22 65 35 30 47 25 -

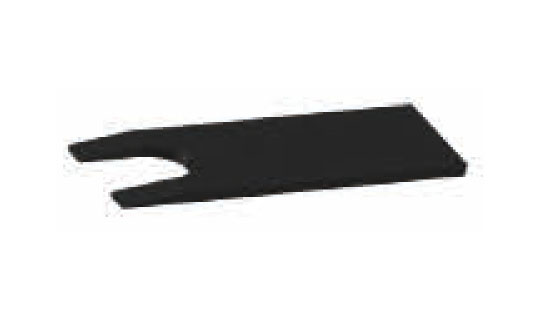

JIG
Scroll Left / RightNo. TYPE 1002013-7 2.3SNP JIG 1002014-7 4SNP JIG 1002015-7 5SNP JIG
