SW Series

The Rotation Center for NC Machining

SW-Series

  • Add a contactless seal to prevent infiltrations SPECIAL OIL SEAL to coolant and foreign matter
  • High degree of accuracy of rotation and high durability by using the triplexed bearing structures as high degree of precision
  • Run out-Max 0.003㎜

NSR-SW TYPE

  • Heat treatment hardness of center axis, HRC 58~62
Scroll Left / Right
Model
NO		 Model Morse Taper Dimension MAX
Weight(kg)		 MAX
R.P.M		 MAX
Run Out(㎜)
ΦD Φd L L1 L2 L3 L4 L5
1011003 3SW MT3 49 24 165.5 85 80.5 51.5 29 6 500 5,000 0.003
1011004 4SW MT4 66 30 207.5 108 99.5 61 38.5 8 800 3,800 0.003
1011005 5SW MT5 83 39 259 136 123 73 50 8 2,000 3,000 0.003
1011006 6SW MT6 105 49 330 189 141 81 60 10 3,500 2,800 0.003

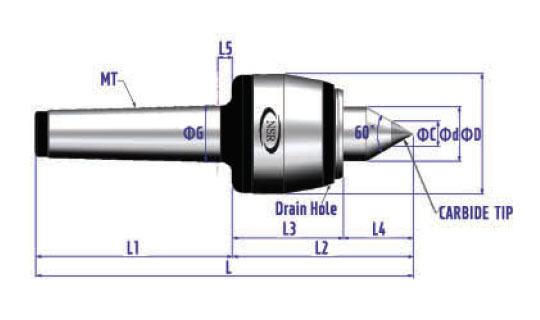

NSR-SWC TYPE

  • Minimized the wear property by inserting tungsten admium alloy (=tungalloy) to center position.
  • Hardness of the tungsten cadmium alloy (=tungalloy) HRA 90~91
Scroll Left / Right
Model
NO		 Model Morse Taper Dimension MAX
Weight(kg)		 MAX
R.P.M		 MAX
Run Out(㎜)
ΦD Φd1 L L1 L2 L3 L4 L5 ΦC
1011013 3SWC MT3 49 24 165.5 85 80.5 51.5 29 6 10 500 5,000 0.003
1011014 4SWC MT4 66 30 207.5 108 99.5 61 38.5 8 14 800 3,800 0.003
1011015 5SWC MT5 83 39 259 136 123 73 50 8 18 2,000 3,000 0.003
1011016 6SWC MT6 105 49 330 189 141 81 60 10 30 3,500 2,800 0.003

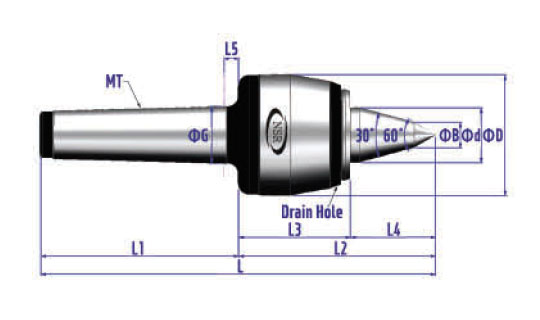

NSR-SWA TYPE

  • Second step-angle application for minimize the bite-interference
  • Heat treatment hardness of center axis, HRC 58~62
Scroll Left / Right
Model
NO		 Model Morse Taper Dimension MAX
Weight(kg)		 MAX
R.P.M		 MAX
Run Out(㎜)
ΦD Φd L L1 L2 L3 L4 L5 ΦB
1011023 3SWA MT3 49 24 176.5 85 91.5 51.5 40 6 10 300 5,000 0.003
1011024 4SWA MT4 66 30 215.5 108 107.5 61 46.5 8 14 500 3,800 0.003
1011025 5SWA MT5 83 39 267.3 136 131.3 73 58.3 8 18 1,500 3,000 0.003
1011026 6SWA MT6 105 49 348 189 159 81 78 10 18 2,500 2,800 0.003

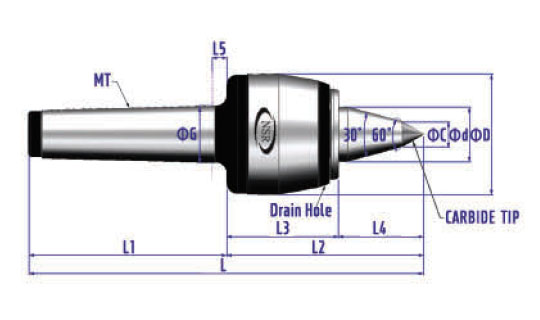

NSR-SWAC TYPE

  • Second step-angle application for minimize the bite-interference
  • Minimized the wear property by inserting tungsten admium alloy (=tungalloy) to center position.
  • Hardness of the tungsten cadmium alloy (=tungalloy) HRA 90~91
Scroll Left / Right
Model
NO		 Model Morse Taper Dimension MAX
Weight(kg)		 MAX
R.P.M		 MAX
Run Out(㎜)
ΦD Φd L L1 L2 L3 L4 L5 ΦC
1011033 3SWAC MT3 49 24 176.5 85 91.5 51.5 40 6 10 300 5,000 0.003
1011034 4SWAC MT4 66 30 215.5 108 107.5 61 46.5 8 14 500 3,800 0.003
1011035 5SWAC MT5 83 39 267.3 136 131.3 73 58.3 8 18 1,500 3,000 0.003
1011036 6SWAC MT6 105 49 348 189 159 81 78 10 18 2,500 2,800 0.003

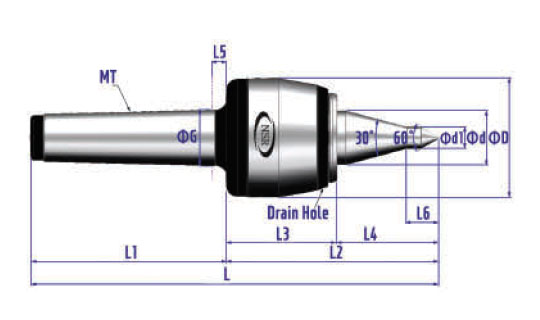

NSR-SWAL TYPE

  • Minimized the bite-interference
  • Heat treatment hardness of center axis, HRC 58~62
Scroll Left / Right
Model
NO		 Model Morse Taper Dimension MAX
Weight(kg)		 MAX
R.P.M		 MAX
Run Out(㎜)
ΦD Φd L L1 L2 L3 L4 L5 L6 Φd1
1001103 3SNNAL MT3 49 24 184.6 85 99.6 51.5 48.1 6 19 10 300 5,000 0.003
1001104 4SNNAL MT4 66 30 225.5 108 117.5 61 56.5 8 18 12 500 3,800 0.003
1001105 5SNNAL MT5 83 39 279.2 136 143.2 73 70.2 8 19.5 14 1,500 3,000 0.003
1001106 6SNNAL MT6 105 49 370 189 181 81 100 10 30 14 2,500 2,800 0.003

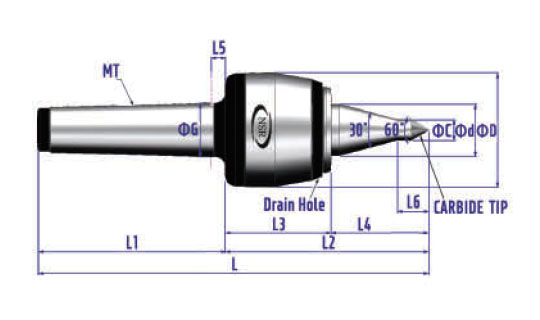

NSR-SWALC TYPE

  • To minimize the interference of bite
  • Minimized the wear property by inserting tungsten admium alloy (=tungalloy) to center position.
  • Hardness of the tungsten cadmium alloy (=tungalloy) HRA 90~91
Scroll Left / Right
Model
NO		 Model Morse Taper Dimension MAX
Weight(kg)		 MAX
R.P.M		 MAX
Run Out(㎜)
ΦD Φd L L1 L2 L3 L4 L5 L6 Φd1
1011053 3SWALC MT3 49 24 184.6 85 99.6 51.5 48.1 6 19 10 300 5,000 0.003
1011054 4SWALC MT4 66 30 225.5 108 117.5 61 56.5 8 18 12 500 3,800 0.003
1011055 5SWALC MT5 83 39 279.2 136 143.2 73 70.2 8 19.5 14 1,500 3,000 0.003
1011056 6SWALC MT6 105 49 370 189 181 81 100 10 30 14 2,500 2,800 0.003
