ENGDC Series
DEAD CENTER

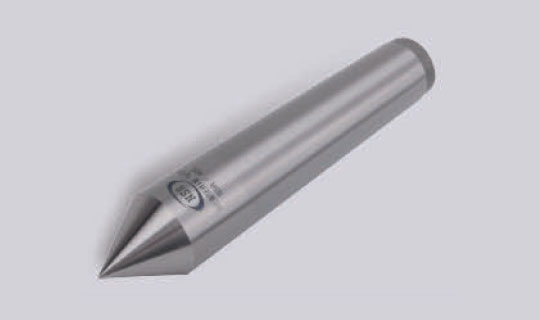

DC-Series
- Possible buying the detachable nut
- Run out-Max 0.002㎜
NSR-DC TYPE
- Heat treatment hardness of center axis, HRC 58~62
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Run Out(mm) |
||||
|---|---|---|---|---|---|---|---|---|
| ΦD | L | L1 | L2 | L3 | ||||
| 1009042 | DC2 | MT2 | 18 | 100 | 67 | 33 | 5 | 0.002 |
| 1009043 | DC3 | MT3 | 24.1 | 123 | 84 | 39 | 5 | 0.002 |
| 1009044 | DC4 | MT4 | 31.6 | 159 | 106.5 | 52.5 | 6.5 | 0.002 |
| 1009045 | DC5 | MT5 | 44.7 | 205 | 134.5 | 70.5 | 6.5 | 0.002 |
| 1009046 | DC6 | MT6 | 63.8 | 275 | 187 | 88 | 8 | 0.002 |
NSR-DCC TYPE
- Hardness of the tungsten cadmium alloy (=tungalloy) HRA 90~91
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Run Out(mm) |
|||||
|---|---|---|---|---|---|---|---|---|---|
| ΦD | L | L1 | L2 | L3 | ΦC | ||||
| 1009052 | DCC2 | MT2 | 18 | 100 | 67 | 33 | 5 | 10 | 0.002 |
| 1009053 | DCC3 | MT3 | 24.1 | 123 | 84 | 39 | 5 | 10 | 0.002 |
| 1009054 | DCC4 | MT4 | 31.6 | 159 | 106.5 | 52.5 | 6.5 | 14 | 0.002 |
| 1009055 | DCC5 | MT5 | 44.7 | 205 | 134.5 | 70.5 | 6.5 | 18 | 0.002 |
| 1009056 | DCC6 | MT6 | 63.8 | 275 | 187 | 88 | 8 | 18 | 0.002 |
