ENGHB Series
For Universal Lathes to Low cost model

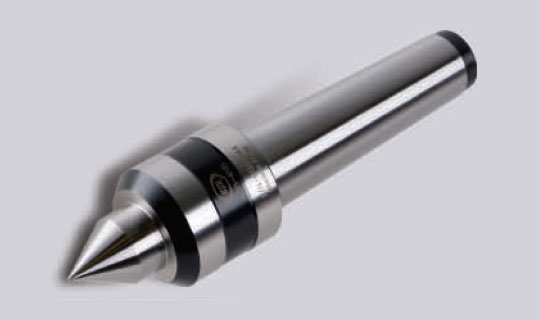

HB-Series
- HEAD rotation type
- Suitable to elaborate turning operation such as manufacturing of small axis
- Degree of precision of rotation - Max 0.003㎜

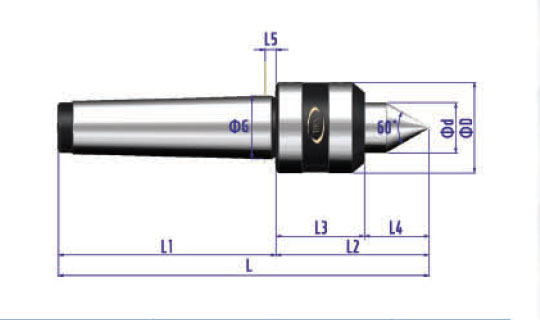

NSR-HB TYPE
- Minimized the body for reducing the bite-interference
- Heat treatment hardness of center head, HRC 58~62
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ||||||
| 1008002 | 2HB | MT2 | 38 | 18 | 124 | 68 | 56 | 35 | 21 | 6 | 300 | 6,000 | 0.003 |
| 1008003 | 3HB | MT3 | 38 | 18 | 141 | 85 | 56 | 35 | 21 | 6 | 400 | 6,000 | 0.003 |
| 1008004 | 4HB | MT4 | 45 | 25 | 184 | 108 | 76 | 44 | 32 | 5.3 | 600 | 5,000 | 0.003 |
| 1008005 | 5HB | MT5 | 63 | 28 | 229 | 136 | 93 | 58 | 35 | 6.3 | 750 | 4,000 | 0.003 |
| 1008006 | 6HB | MT6 | 102 | 55 | 333 | 189 | 144 | 82 | 62 | 10 | 1,200 | 2,000 | 0.003 |
NSR-HBC TYPE
- Minimized the body for reducing the bite-interference
- Minimized the wear property by inserting tungsten cadmium alloy (=tungalloy) to center position.
- Hardness of the tungsten cadmium alloy (=tungalloy) HRA 90~91
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦC | ||||||
| 1008012 | 2HBC | MT2 | 38 | 18 | 124 | 68 | 56 | 35 | 21 | 6 | 1 | 300 | 6,000 | 0.003 |
| 1008013 | 3HBC | MT3 | 38 | 18 | 141 | 85 | 56 | 35 | 21 | 6 | 10 | 400 | 6,000 | 0.003 |
| 1008014 | 4HBC | MT4 | 45 | 25 | 184 | 108 | 76 | 44 | 32 | 5.3 | 12 | 600 | 5,000 | 0.003 |
| 1008015 | 5HBC | MT5 | 63 | 28 | 229 | 136 | 93 | 58 | 35 | 6.3 | 14 | 750 | 4,000 | 0.003 |

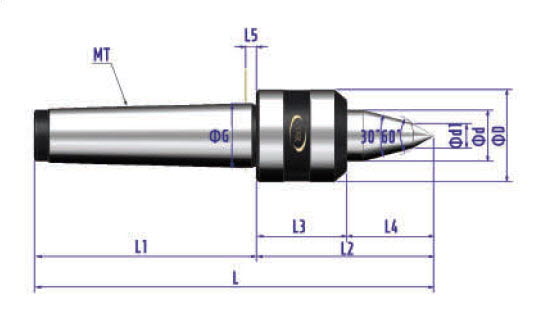

NSR-HBA TYPE
- Second step-angle application for minimize the bite-interference
- Heat treatment hardness of center head, HRC 58~62
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | Φd1 | ||||||
| 1008024 | 4HBA | MT4 | 45 | 25 | 194.2 | 108 | 86.2 | 44 | 42.2 | 5.3 | 12 | 600 | 5,000 | 0.003 |
| 1008025 | 5HBA | MT5 | 63 | 28 | 238 | 136 | 102 | 58 | 44 | 6.3 | 14 | 750 | 4,000 | 0.003 |
NSR-HBAC TYPE
- Second step-angle application for minimize the bite-interference
- Heat treatment hardness of center head, HRA 90~91
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | Φd1 | ||||||
| 1008034 | 4HBAC | MT4 | 45 | 25 | 194.2 | 108 | 86.2 | 44 | 42.2 | 5.3 | 12 | 600 | 5,000 | 0.003 |
| 1008035 | 5HBAC | MT5 | 63 | 28 | 238 | 136 | 102 | 58 | 44 | 6.3 | 14 | 750 | 4,000 | 0.003 |
