ENGPC series
Using to pipe manufacturing

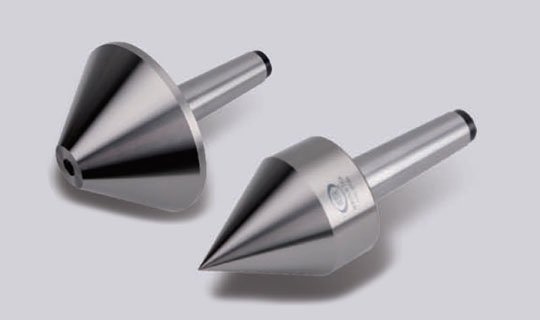

PC-Series
- HEAD rotation type
- RUN OUT - Max 0.003㎜

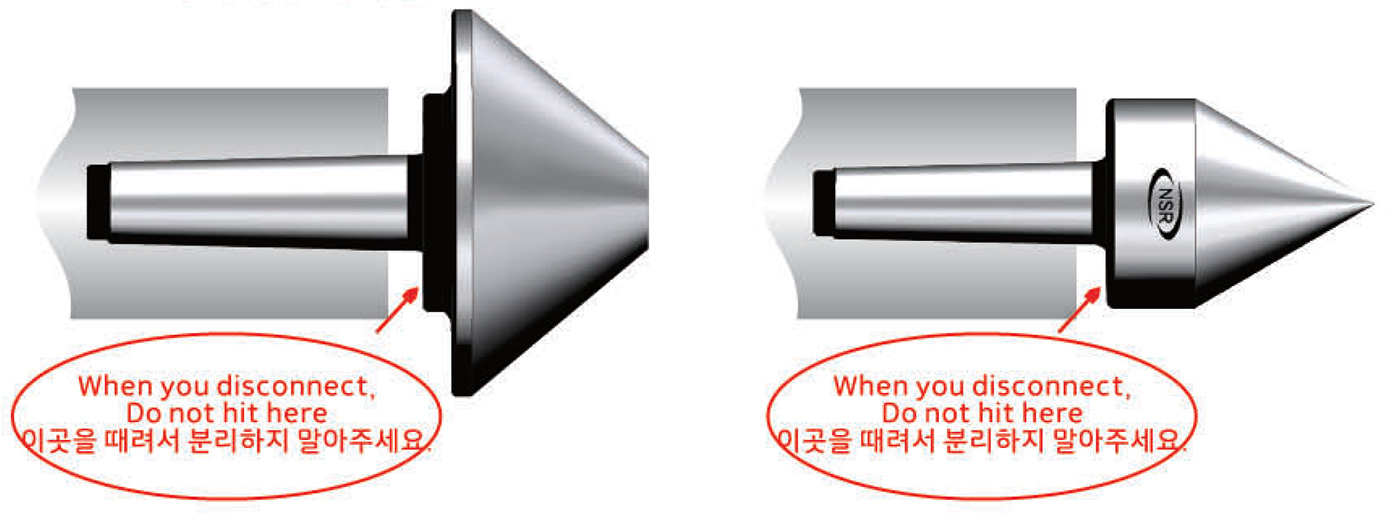

PC TYPE Notes on Adoption

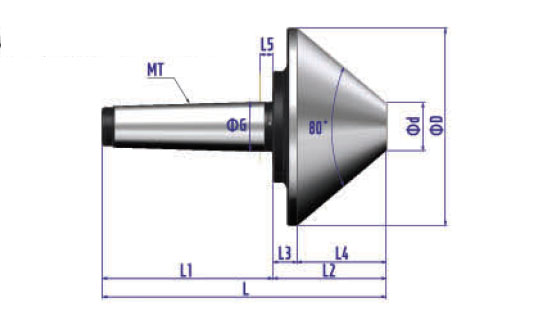

NSR-PC80 TYPE
- Adjustable to wobble of center head position by nut
- Center position angle 80 degree
- Heat treatment hardness of center head, HRC 58~62
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ||||||
| 1005023 | 3PC80 | MT3 | 95 | 20 | 143 | 85 | 58 | 12.3 | 44.7 | 6 | 400 | 4,000 | 0.003 |
| 1005024 | 4PC18 | MT4 | 125 | 30 | 180 | 108 | 72 | 15.4 | 56.6 | 8 | 800 | 3,000 | 0.003 |
| 1005025 | 5PC80 | MT5 | 150 | 35 | 220 | 136 | 84 | 15.5 | 68.5 | 8 | 1,600 | 2,000 | 0.003 |
| 1005026 | 6PC80 | MT6 | 200 | 38 | 305 | 189 | 116 | 19.5 | 96.5 | 10 | 2,500 | 1,500 | 0.003 |

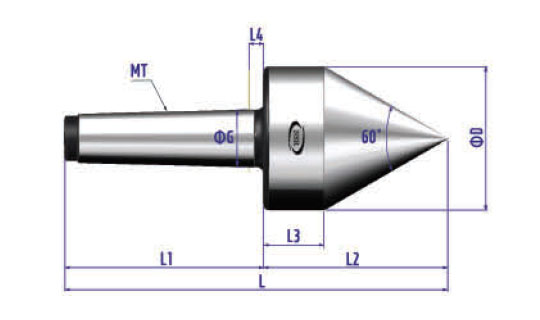

NSR-PC60 TYPE
- Center position angle 60 degree
- Heat treatment hardness of center head, HRC 58~62
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | L | L1 | L2 | L3 | L4 | ||||||
| 1005002 | 2PC60 | MT2 | 44 | 134 | 68 | 66 | 28.3 | 6 | 400 | 5,000 | 0.003 |
| 1005003 | 3PC60 | MT3 | 56 | 163 | 85 | 78 | 30 | 6 | 400 | 5,000 | 0.003 |
| 1005004 | 4PC60 | MT4 | 78 | 208 | 108 | 100 | 33 | 8 | 800 | 3,800 | 0.003 |
| 1005005 | 5PC60 | MT5 | 98 | 261 | 136 | 125 | 41 | 8 | 1,600 | 3,000 | 0.003 |
| 1005006 | 6PC60 | MT6 | 118 | 343 | 189 | 154 | 52.7 | 10 | 2,500 | 2,800 | 0.003 |

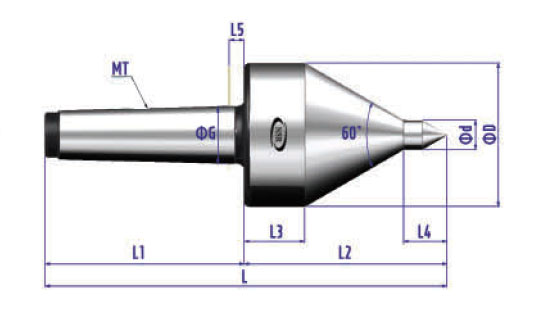

NSR-PC60L TYPE
- Second step-angle application for minimize the bite-interference
- Center position angle 60 degree
- Heat treatment hardness of center head, HRC 58~62
Scroll Left / Right
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ||||||
| 1005012 | 2PC60L | MT2 | 44 | 12 | 147 | 68 | 79 | 31.3 | 20 | 6 | 300 | 5,000 | 0.003 |
| 1005013 | 3PC60L | MT3 | 56 | 12 | 173 | 85 | 88 | 30 | 20 | 6 | 300 | 5,000 | 0.003 |
| 1005014 | 4PC60L | MT4 | 78 | 16 | 218 | 108 | 110 | 33 | 23.4 | 8 | 550 | 3,800 | 0.003 |
| 1005015 | 5PC60L | MT5 | 98 | 19 | 276 | 136 | 140 | 41 | 30.6 | 8 | 1,200 | 3,000 | 0.003 |
| 1005016 | 6PC60L | MT6 | 118 | 20 | 353 | 189 | 164 | 46.1 | 33 | 10 | 2,000 | 2,800 | 0.003 |
