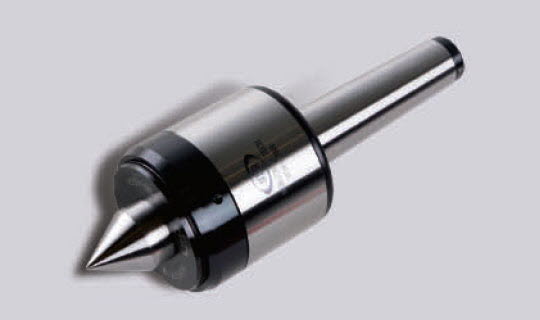

SSH Series

适合高速旋转符合

SSH-Series

超髙速精密轴承构造
非接触式油泵使用，防止发热，防止切削油及异物质侵入
适合加工使用超高速精密
跳动公差为0.002mm以内

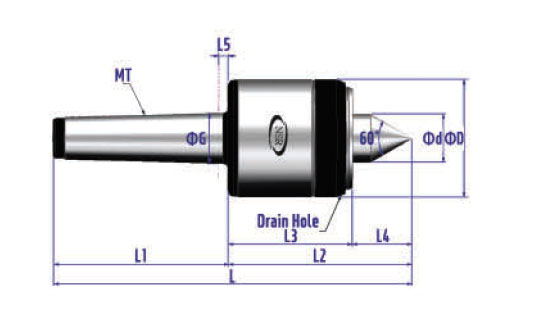

NSR-SSH TYPE

顶尖头的热处理硬度为HRC58-62

向左/向右滚动

Model NO	Model	Morse Taper	Dimension								MAX Weight(kg)	MAX R.P.M	MAX Run Out(㎜)
Model NO	Model	Morse Taper	ΦD	Φd	L	L1	L2	L3	L4	L5	MAX Weight(kg)	MAX R.P.M	MAX Run Out(㎜)
1012002	2SH	MT2	49	20	149	68	81	55.5	25.5	4.5	350	15,000	0.002
1012003	3SH	MT3	49	20	166	85	81	55.5	25.5	4.5	350	15,000	0.002
1012004	4SH	MT4	73	30	222	108	114	77	37	6	650	12,000	0.002
1012005	5SH	MT5	73	30	250	136	114	77	37	6	650	12,000	0.002

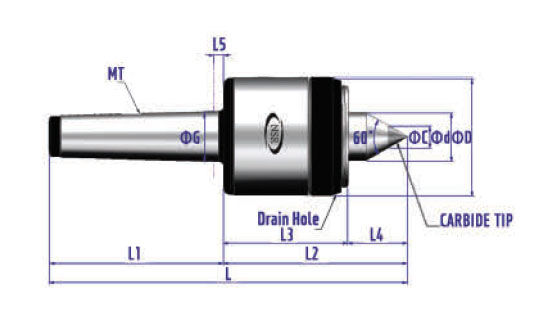

NSR-SSHC TYPE

顶尖头部镶入硬质合金，耐磨性显著提高
硬质合金硬度HRA 90-91

向左/向右滚动

Model NO	Model	Morse Taper	Dimension									MAX Weight(kg)	MAX R.P.M	MAX Run Out(㎜)
Model NO	Model	Morse Taper	ΦD	Φd	L	L1	L2	L3	L4	L5	ΦC	MAX Weight(kg)	MAX R.P.M	MAX Run Out(㎜)
1023012	2SHC	MT2	49	20	149	68	81	55.5	25.5	4.5	10	350	15,000	0.002
1023013	3SHC	MT3	49	20	166	85	81	55.5	25.5	4.5	10	350	15.000	0.002
1023014	4SHC	MT4	73	30	222	108	114	77	37	6	14	650	12,000	0.002
1023015	5SHC	MT5	73	30	250	136	114	77	37	6	18	650	12,000	0.002

NSR-SSHA TYPE

顶尖头部采用两段锥度设计，有效减少干涉
顶尖头的热处理硬度为HRC 58-62

向左/向右滚动

Model NO	Model	Morse Taper	Dimension									MAX Weight(kg)	MAX R.P.M	MAX Run Out(㎜)
Model NO	Model	Morse Taper	ΦD	Φd	L	L1	L2	L3	L4	L5	ΦB	MAX Weight(kg)	MAX R.P.M	MAX Run Out(㎜)
1012022	2SHA	MT2	49	20	155.5	68	87.5	55.5	32	4.5	10	280	15,000	0.002
1012023	3SHA	MT3	49	20	172.5	85	87.5	55.5	32	4.5	10	280	15,000	0.002
1012024	4SHA	MT4	73	30	236	108	128	77	51	6	14	450	12,000	0.002
1012025	5SHA	MT5	73	30	264	136	128	77	51	6	16	450	12,000	0.002

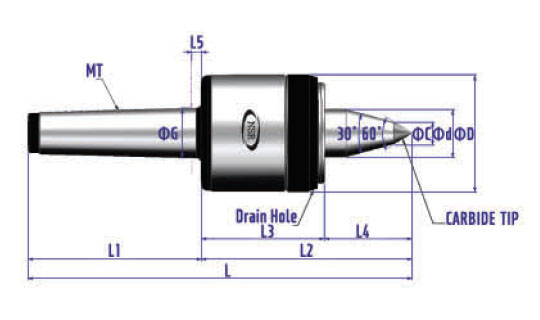

NSR-SSHAC TYPE

顶尖头部采用两段锥度设计，有效减少干涉
顶尖头部镶入硬质合金，耐磨性显著提髙
硬质合金硬度为HRA 90-91

向左/向右滚动

Model NO	Model	Morse Taper	Dimension									MAX Weight(kg)	MAX R.P.M	MAX Run Out(㎜)
Model NO	Model	Morse Taper	ΦD	Φd	L	L1	L2	L3	L4	L5	ΦC	MAX Weight(kg)	MAX R.P.M	MAX Run Out(㎜)
1023032	2SHAC	MT2	49	20	155.5	68	87.5	55.5	32	4.5	10	280	15,000	0.002
1023033	3SHAC	MT3	49	20	172.5	85	87.5	55.5	32	4.5	10	280	15,000	0.002
1023034	4SHAC	MT4	73	30	236	108	128	77	51	6	14	450	12,000	0.002
1023035	5SHAC	MT5	73	30	264	136	128	77	51	6	16	450	12,000	0.002

NSR-SSHAL TYPE

最大限度减少刀具干涉
顶尖头的热处理硬度为HRC 58-62

向左/向右滚动

Model NO	Model	Morse Taper	Dimension										MAX Weight(kg)	MAX R.P.M	MAX Run Out(㎜)
Model NO	Model	Morse Taper	ΦD	Φd	L	L1	L2	L3	L4	L5	L6	Φd1	MAX Weight(kg)	MAX R.P.M	MAX Run Out(㎜)
1012042	2SHAL	MT2	49	20	166.5	68	98.5	55.5	43	4.5	19	10	250	15,000	0.002
1012043	3SHAL	MT3	49	20	183.5	85	98.5	55.5	43	4.5	19	10	250	15,000	0.002
1012044	4SHAL	MT4	73	30	246.5	108	138.5	77	61.5	6	23.5	12.5	390	12,000	0.002
1012045	5SHAL	MT5	73	30	274.5	136	138.5	77	61.5	6	23.5	12.5	390	12,000	0.002

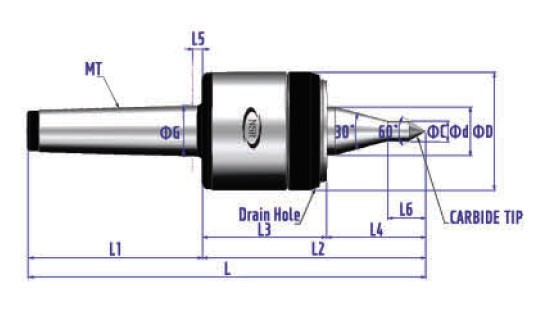

NSR-SSHALC TYPE

最大限度减少刀具干涉
顶尖头部镶入硬质合金，耐磨性显著提高
硬质合金硬度为HRA 90-91

向左/向右滚动

Model NO	Model	Morse Taper	Dimension										MAX Weight(kg)	MAX R.P.M	MAX Run Out(㎜)
Model NO	Model	Morse Taper	ΦD	Φd	L	L1	L2	L3	L4	L5	L6	ΦC	MAX Weight(kg)	MAX R.P.M	MAX Run Out(㎜)
1012052	2SSHALC	MT2	49	20	166.5	68	98.5	55.5	43	4.5	19	10	250	15,000	0.002
1012053	3SSHALC	MT3	49	20	183.5	85	98.5	55.5	43	4.5	19	10	250	15,000	0.002
1012054	4SSHALC	MT4	73	30	246.5	108	138.5	77	61.5	6	23.5	12.5	390	12,000	0.002
1012055	5SSHALC	MT5	73	30	274.5	136	138.5	77	61.5	6	23.5	12.5	390	12,000	0.002
