CHISH Series
咼速旋转用普通类型

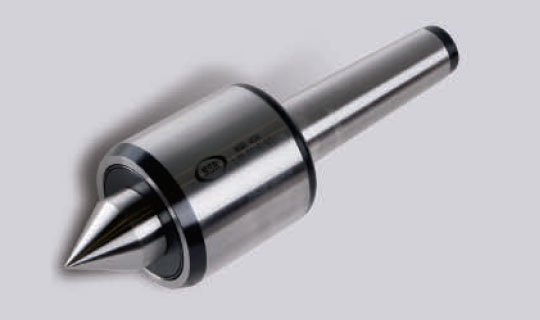

SH-Series
- 使用高速轴承和特殊密封胶条
- 适用于高速加工
- RUNOUT 0.002mm 以内

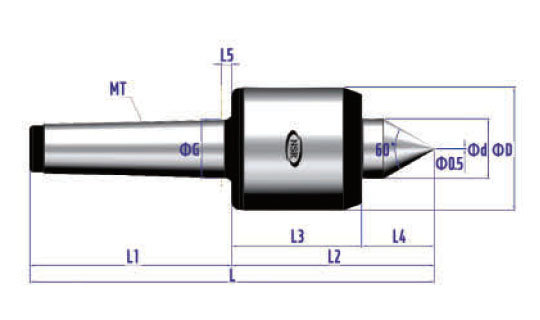

NSR-SH TYPE
- 顶尖部热处理硬度为HRC 58-62
向左/向右滚动
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ||||||
| 1023003 | 3SH | MT3 | 49 | 25 | 167.4 | 85 | 82.4 | 54.4 | 28 | 4.5 | 750 | 6,000 | 0.002 |
| 1023004 | 4SH | MT4 | 66 | 32 | 216.6 | 108 | 108.6 | 69.6 | 39 | 5.3 | 1,440 | 6,000 | 0.002 |
| 1023005 | 5SH | MT5 | 82 | 40 | 258.8 | 136 | 122.8 | 79.8 | 43 | 6.3 | 2,500 | 5,000 | 0.002 |

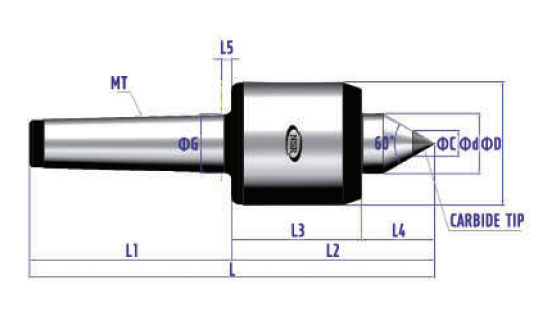

NSR-SHC TYPE
- 心轴头部嵌入硬质合金，具备高耐磨度
- 硬质合金硬度HRA 90-91
向左/向右滚动
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦC | ||||||
| 1023013 | 3SHC | MT3 | 49 | 25 | 167.4 | 85 | 82.4 | 54.4 | 28 | 4.5 | 10 | 750 | 6,000 | 0.002 |
| 1023014 | 4SHC | MT4 | 66 | 32 | 216.6 | 108 | 108.6 | 69.6 | 39 | 5.3 | 14 | 1,400 | 6,000 | 0.002 |
| 1023015 | 5SHC | MT5 | 82 | 40 | 258.8 | 136 | 122.8 | 79.8 | 43 | 6.3 | 18 | 2,500 | 5,000 | 0.002 |

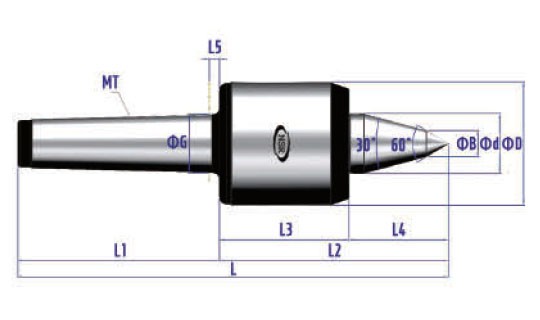

NSR-SHA TYPE
- 为了最小化工件的干涉，心轴做了2段角度
- 顶尖轴的热处理硬度HRC 58-62
向左/向右滚动
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦB | ||||||
| 1001023 | 3SHA | MT3 | 49 | 25 | 177.4 | 85 | 92.4 | 54.4 | 38 | 4.5 | 12 | 600 | 6,000 | 0.002 |
| 1001024 | 4SHA | MT4 | 66 | 32 | 230.6 | 108 | 122.6 | 69.6 | 53 | 5.3 | 14 | 1,100 | 6,000 | 0.002 |
| 1001025 | 5SHA | MT5 | 82 | 40 | 279 | 136 | 143 | 79.8 | 63.2 | 63.2 | 16 | 2,000 | 5,000 | 0.002 |

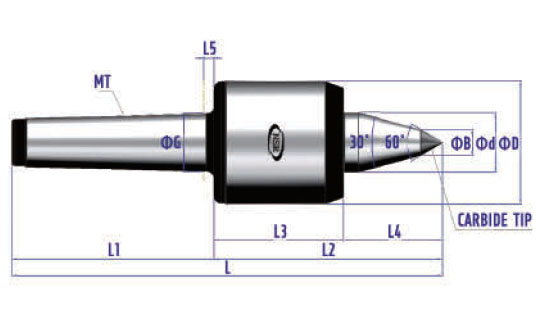

NSR-SHAC TYPE
- 为了最小化工件的干涉，心轴做了2段角度
- 心轴头部嵌入硬质合金，具备高耐磨度
- 硬质合金硬度HRA 90-91
向左/向右滚动
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | ΦC | ||||||
| 1023033 | 3SHAC | MT3 | 49 | 25 | 177.4 | 85 | 92.4 | 54.4 | 38 | 4.5 | 12 | 600 | 6,000 | 0.002 |
| 1023034 | 4SHAC | MT4 | 66 | 32 | 230.6 | 108 | 122.6 | 69.6 | 53 | 5.3 | 14 | 1,100 | 6,000 | 0.002 |
| 1023035 | 5SHAC | MT5 | 82 | 40 | 279 | 136 | 143 | 79.8 | 63.2 | 6.3 | 16 | 2,000 | 5,000 | 0.002 |
NSR-SHAL TYPE
- 最小化了工件干涉
- 顶尖轴的热处理硬度HRC 58-62
向左/向右滚动
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | L6 | Φd1 | ||||||
| 1023043 | 3SHAL | MT3 | 49 | 25 | 184.4 | 85 | 99.4 | 54.4 | 45 | 4.5 | 15 | 10 | 600 | 6,000 | 0.002 |
| 1023044 | 4SHAL | MT4 | 66 | 32 | 242.6 | 108 | 134.6 | 69.6 | 65 | 5.3 | 23 | 12 | 1,100 | 6,000 | 0.002 |
| 1023045 | 5SHAL | MT5 | 83 | 40 | 296.5 | 136 | 160.5 | 79.8 | 80.7 | 6.3 | 24 | 12 | 2,000 | 5,000 | 0.002 |

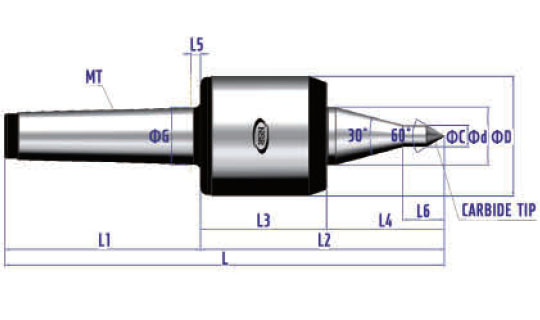

NSR-SHALC TYPE
- 最小化了工件干涉
- 心轴头部嵌入硬质合金，具备髙耐磨度
- 硬质合金硬度HRA 90-91
向左/向右滚动
| Model NO |
Model | Morse Taper | Dimension | MAX Weight(kg) |
MAX R.P.M |
MAX Run Out(㎜) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ΦD | Φd | L | L1 | L2 | L3 | L4 | L5 | L6 | ΦC | ||||||
| 1023053 | 3SHALC | MT3 | 49 | 25 | 184.4 | 85 | 99.4 | 54.4 | 45 | 15 | 15 | 10 | 600 | 6,000 | 0.002 |
| 1023054 | 4SHALC | MT4 | 66 | 32 | 242.6 | 108 | 134.6 | 69.6 | 5.3 | 23 | 23 | 12 | 1,100 | 6,000 | 0.002 |
| 1023055 | 5SHALC | MT5 | 82 | 40 | 296.5 | 136 | 160.5 | 79.8 | 6.3 | 24 | 24 | 12 | 2,000 | 5,000 | 0.002 |
