CHIMorse Taper
Scroll Left / Right

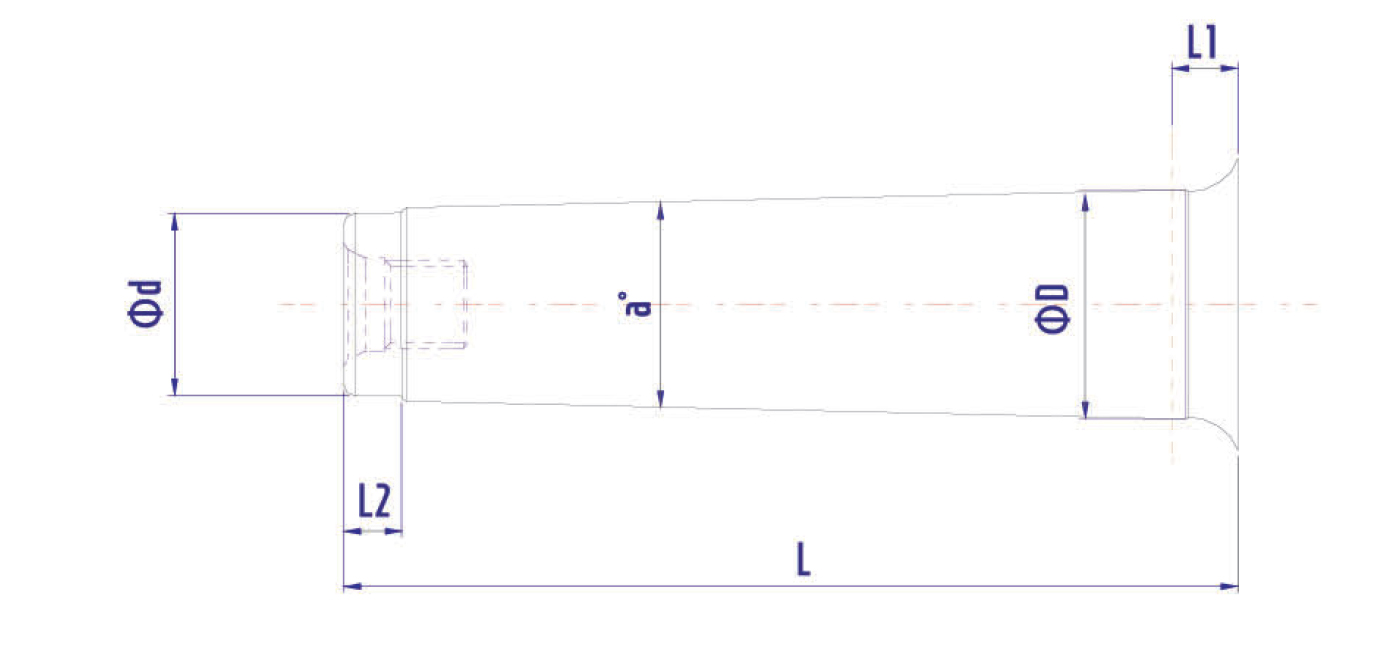

| No. | Dimension | ||||||
|---|---|---|---|---|---|---|---|
| A" | ФD(Gauge Line) | Фd | L | L1 | L2 | ||
| MT0 | 2" 49' 24.7802" | 2.823 550 06" | Ф9.045 | 6 | 53 | 3 | 4 |
| MT1 | 2" 51' 26.9283" | 2.857 480 08" | Ф12.065 | 9 | 57 | 3.5 | 4 |
| MT2 | 2" 51' 40.7960" | 2.861 332 23" | Ф17.780 | 14 | 68 | 6 | 4 |
| MT3 | 2" 52' 31.4463" | 2.875 401 76" | Ф23.825 | 19 | 85 | 6 | 5 |
| MT4 | 2" 58' 30.4217" | 2.975 117 13" | Ф31.267 | 25 | 108 | 8 | 7 |
| MT5 | 3" 0' 52.3956" | 3.014 554 34" | Ф44.399 | 35 | 136 | 8 | 7 |
| MT6 | 2" 59' 11.7258" | 2.986 590 50" | Ф63.348 | 51 | 189 | 10 | 10 |
| MT7 | 2" 58' 56.7514" | 2.982 430 93" | Ф83.058 | 67 | 260 | 12 | 12 |
